See Top 10 New Features of SOLIDWORKS 2016



1.SOLIDWORKS Visualize – Bring Your Designs to Life

SW1_Visualize_Bring_Your_Designs_to_Life

  • Improved functionality for media-ready images, movies and immersive content
  • Use both CPU and GPU to speed up rendering — less time to quality result
  • Included with SOLIDWORKS 2016 Professional and Premium

2.Enhanced Part Modeling Capabilities

SW2_Enhanced_Part_Modeling_Capabilities

  • Thread Wizard tool to create internal and external threads
  • Bi-directional sweep and curvature continuous edge fillets
  • Flatten surface includes flattening of curves
  • Sheet Metal allows cuts in the bend area of swept flange and edge flanges can now be longer                                                                           than the attachment edge

3.Streamlined Assembly Development

SW3_Streamlined_Assembly_Development

  • Component preview window for mate selections
  • Mate Controller for fast capture and recall of mate positions
  • Replace multiple failed mate references in one step
  • Copy multiple components and retain mates

4.Faster 2D Drawing Creation

SW4_Faster_2D_Drawing_Creation

  • Automatic Border tool controls sheet format border
  • New model Break View tool
  • Turn off view scale for center marks and other detailing improvements

5.“Drawingless” Manufacturing Enhanced

SW5_Drawingless_Manf_Enhanced

  • Create DimXpert dimensions in Assembly
  • Display and associate model coordinate systems automatically
  • Publish and print multiple sheets, tables, and viewports in 3D PDF

6.Improved Electrical Design and Communication

SW6_Improved_Electrical_Design_and_communication

  • Streamlined workflow with contextual information display
  • SOLIDWORKS Electrical for DraftSight® add-in with real-time redline, annotation, and reporting

7.Making Design Easier

SW7_Making_Design_Easier

  • New “breadcrumbs” tracking/selection of items in model hierarchy
  • Better support for high-resolution monitors and expandable Property Manager input panels
  • Sketch: dynamically manipulate dimensioned sketch entities
  • My.SOLIDWORKS: Search function available inside SOLIDWORKS 2016

    •

8.Simplifying Design Validation

SW8_Simplifying_Design_Validation

  • Simulation: Find unconstrained degrees of freedom, turn constraints on and off, and perform mesh sectioning
  • Plastics: Enhanced Solver performance and improved indirect flow front tracking
  • Flow: Improved mesh refinement controls and transient solver speed

9.Connecting Design and Manufacturing

SW9_Connecting_Design_and_Manf

  • 3D Printing: 3D print preview using textures and show areas requiring supports
  • Inspection: OCR Editor to customize and improve optical character recognition dictionaries and output horizontal inspection reports
  • Costing: Cost an entire assembly, nesting for sheet metal, and rules to modify settings automatically
  • Compare Geometry: Save geometry differences directly into either model being compared

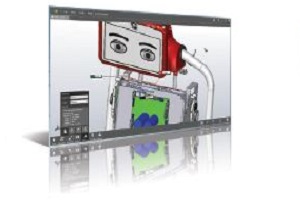

10.Expanded Communication and Collaboration

SW10_Expanded_Communication_and_Collaboration

  • SOLIDWORKS PDM Standard: New product offer based on SOLIDWORKS PDM (now named SOLIDWORKS PDM Professional for 2016) designed for smaller workgroups to manage SOLIDWORKS data and provide an easy upgrade to SOLIDWORKS PDM Professional
  • SOLIDWORKS PDM Set Revision: Enables streamlined management of revision levels and properties for existing and newly imported data
  • eDrawings®: AR for Android™; 3D Views and annotation views for assemblies; Component descriptions; Weld beads; Undo/Redo
  • Import/Export: Export material properties to IFC 2×3, export IFC 4.0, import PTC® Creo® 3.0, import large STL models and FeatureWorks®; supports ANSI inch hole upon import
